Wheels:
English Racing forges new path with metal 3D printing

Albany, Oregon, has been a hotbed of metallurgical distinction since 1943 when President Franklin D. Roosevelt announced that the U.S. Bureau of Mines had selected the site to begin researching methods to create zirconium and titanium alloys. That decision provided the impetus for a thriving industry built on developing alloy systems designed to meet extreme applications.

Metal Technology (MTI) of Albany has made its name through developing aerospace and defense applications, which have included manufacturing components for the Trident missile programs and various space exploration initiatives. MTI has positioned itself in the global metals industry as a dependable innovator. Now, MTI is expanding the paradigm of metal parts design and manufacturing.

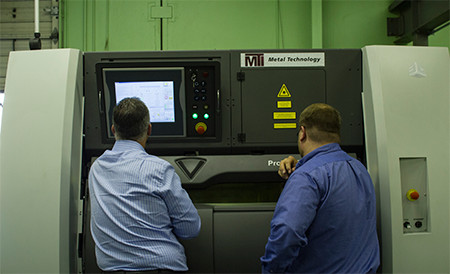

As a keystone of the company's effort to reshape how metal parts are made, MTI has made the leap into additive manufacturing, adding the 3D Systems ProX 300 Direct Metal Sintering (DMS) 3D printer to its capabilities portfolio. The ProX 300 uses a laser sintering process to produce chemically pure, fully dense, precise metal parts with a level of speed and complexity that's unmatched in traditional manufacturing processes.

One of MTI's key strategies with the newly added ProX 300 is to transfer its vast metals experience to new markets, industries, and applications. So when a motor sports opportunity came up this year -- a case that was perfect for the ProX 300 -- the team was all over it.

Gary Cosmer, MTI's CEO and a motorsports aficionado who spends much of his free time participating in racing activities, quickly recognized the value proposition that 3D-printed parts would play in the motorsports market.

"Prior to 3D-printed metal components, the costs of designing and fabricating one-off or small lots of parts or components was prohibitive in most cases," said Cosmer. "3D printing also opens up a whole new way of thinking about the design of components, where printed parts allow for higher complexity and more complex features that allow significant weight savings or enhanced flowability for cooling within the component."

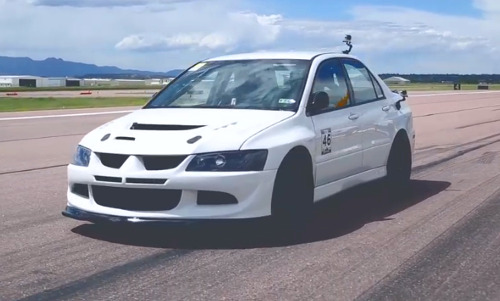

In neighboring Washington state, English Racing was struggling with their Mitsubishi 4G63 race engines. The high-performance cars that English Racing puts on the track, especially the Mitsubishi Evo, which is set up for half-mile top-speed events where the vehicle runs upwards of 185 mph, can experience RPMs in excess of 10,000. The car's factory oil pump drive pulley translated those increased RPMs into excessive oil pressure, a situation where complete engine failure can quickly follow.

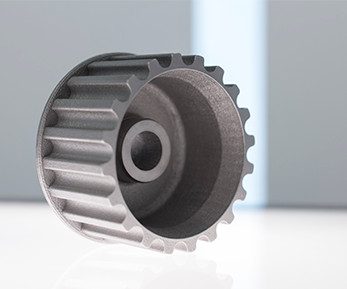

English Racing had an innovative approach to the problem: They'd use a new pulley with a larger diameter, which would turn slower and thereby lower the oil pressure. But producing it was a huge challenge. The original pulley was a cast part, which would typically require a mold, tooling to produce a mold, a significant amount of lead time, and a prohibitive amount of money.

Trying unsuccessfully to produce this part for over two years, English Racing saw no relief in sight. So when, in early 2014, the company discovered MTI, they were able to quickly prepare the design data for 3D printing and produce the part on the ProX 300. The initial working prototype took only five hours to print.

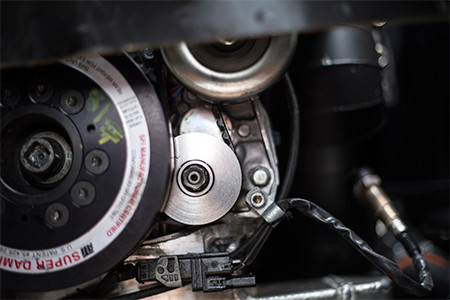

Within three days, that part was installed on the Mitsubishi Evo race car and running on the track. The part worked perfectly, reducing oil pressure to safe levels and allowing the vehicle to set speed records in its class.

"The ProX 300 allowed us to produce end-use parts faster and more economically than ever before, and these parts are being used in some of the most demanding environments you can imagine," said Cosmer. "By printing the part we were also able to include features and design parameters that could not be done with traditional methods. In the matrix of component complexity and manufacturing speed and cost, the ProX 300 allows us to bridge that gap for our customers."

After the first part was built and tested, they used the ProX 300 for a production run of 35 additional parts for different race applications across the country.

On June 27, 2014, the English Racing team put its newly designed oil pump pulley to the test at the Pikes Peak half-mile top-speed event and achieved 184.9 mph, placing first place in the Sedan Class. "The car ran great like we expected it would," said Zach Morgan, Technician and Tuner for English Racing. "We have been running the car on our dynometer without any failures, so we thought we had a car that was going to put us in the winners' circle, we just didn't know if that was going to be first place or not. The team is stoked!"

"The ProX 300 was perfect for this job. In total we spent 130 hours on the project that was pretty substantial," said Cosmer.

The quantity, geometry, and part features that would have been difficult to produce any other way made this an ideal application for DMS on the ProX 300. MTI was able to make short work of a project that had been in the works for years, saving English Racing thousands of dollars and significant time over other manufacturing processes.

"The entire metals industry is on a learning curve in terms of input material, and this in only going to improve," said Cosmer. "MTI is leading and driving that learning curve and excited to be pushing the envelope in 3D-printed metal. We don't consider this a trivial pursuit."

Addendum: On July 13, 2014, the Mistubishi Evo, with its 3D-printed metal underdrive oil pump pulley, took first place and set a new record as the fastest four-door vehicle at the Texas 1/2 Mile Shootout, clocking a top speed of 196.6783 mph.

About Metal Technology (MTI)
Alloys from Metal Technology (MTI) include Tantalum, Niobium, Zirconium, Titanium, Tungsten, Nickel, Inconel, Molybdenum, and Vanadium. MTI uses specialized additive manufacturing, deep-draw, spinning, forging, machining, EDM, and fabrication methods. MTI produces components for ion source components, targets, seamless crucibles, explosively formed penetrators, tubing and vessels, as well as custom parts that go beyond common configurations. Visit the company's website to learn more: www.mtialbany.com.

Source: 3D Systems

Published December 2014
